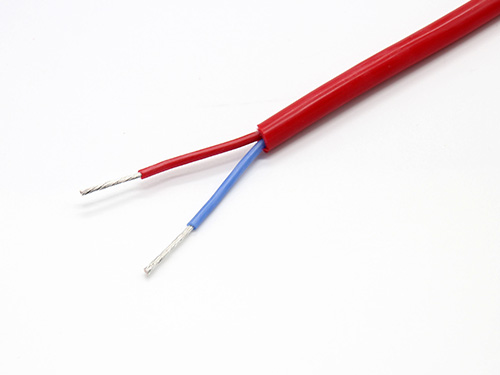

YGC
產品型號：YGC
產品特性：
1.額定電壓：450/750V
2.工作溫度：-60~+200℃

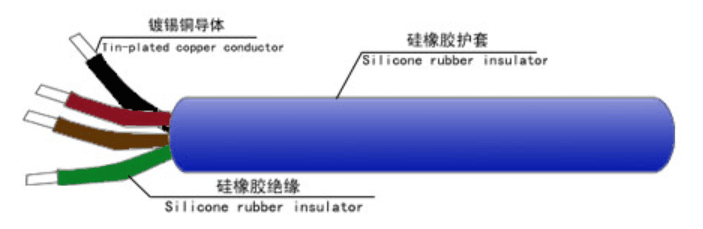

3.導體：絞合鍍錫銅線
4.絕緣：硅橡膠
5.護套：硅橡膠
6.顏色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途：
可在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求：
按照雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
規格結構及技術參數：
YGC產品技術參數（1）
|
芯數×截面 |
導體結構 |
絕緣厚度 |
完成外徑 |
護套厚度 |
平均外徑 |
20 ℃時導體電阻≤ （Ω /KM ） |
|
2 × 4 |
56/0.30 |
0.70 |
4.10 |
1.40 |
11.0 |
5.09 |
|
3 × 4 |
56/0.30 |
0.70 |
4.10 |
1.60 |
12.0 |
5.09 |
|
4 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
13.5 |
5.09 |
|
5 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
14.6 |
5.09 |
|
6 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
16.0 |
5.09 |
|
7 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
16.0 |
5.09 |
|
10 × 4 |
56/0.30 |
0.70 |
4.10 |
2.20 |
20.0 |
5.09 |
|
12 × 4 |
56/0.30 |
0.70 |
4.10 |
2.40 |
22.0 |
5.09 |
|
2 × 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.0 |
3.39 |
|
3 × 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.8 |
3.39 |
|
4 × 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
15.4 |
3.39 |
|
5 × 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
16.8 |
3.39 |
|
6 × 6 |
84/0.30 |
0.70 |
4.90 |
2.00 |
18.8 |
3.39 |
|
7 × 6 |
84/0.30 |
0.70 |
4.90 |
2.00 |
18.8 |
3.39 |
|
10 × 6 |
84/0.30 |
0.70 |
4.90 |
2.20 |
23.4 |
3.39 |
|
2 × 10 |
84/0.40 |
1.0 |
6.60 |
1.80 |
17.0 |
1.95 |
|
3 × 10 |
84/0.40 |
1.0 |
6.60 |
1.80 |
18.0 |
1.95 |
|
4 × 10 |
84/0.40 |
1.0 |
6.60 |
2.00 |
20.0 |
1.95 |
|
5 × 10 |
84/0.40 |
1.0 |
6.60 |
2.40 |
22.8 |
1.95 |
|
2 × 16 |
126/0.40 |
1.2 |
8.40 |
2.50 |
21.8 |
1.24 |
|
3 × 16 |
126/0.40 |
1.2 |
8.40 |
2.60 |
23.2 |
1.24 |
|
4 × 16 |
126/0.40 |
1.2 |
8.40 |
2.60 |
25.6 |
1.24 |
|
5 × 16 |
126/0.40 |
1.2 |
8.40 |
2.80 |
28.2 |
1.24 |
|
2 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
25.4 |
0.795 |
|
3 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
27.0 |
0.795 |
|
4 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
29.6 |
0.795 |
|
5 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
32.80 |
0.795 |
|
2 × 35 |
494/0.30 |
1.4 |
11.5 |
2.4 |
28.0 |
0.565 |
|
3 × 35 |
494/0.30 |
1.4 |
11.5 |
2.6 |
30.0 |
0.565 |
|
4 × 35 |
494/0.30 |
1.4 |
11.5 |
2.6 |
33.0 |
0.565 |
|
3 × 50 |
396/0.40 |
1.6 |
14.0 |
2.8 |
36.0 |
0.393 |
|
4 × 50 |
396/0.40 |
1.6 |
14.0 |
2.8 |
39.6 |
0.393 |
|
3 × 70 |
551/0.40 |
1.6 |
15.6 |
3.0 |
10.0 |
0.277 |
|
3 × 95 |
760/0.40 |
1.8 |
18.2 |
3.2 |
45.8 |
0.210 |
|
3 × 120 |
608/0.50 |
2.0 |
20.0 |
3.6 |
50.6 |
0.164 |
|
3 × 150 |
760/0.50 |
2.2 |
22.4 |
3.8 |
56.2 |
0.132 |
|
3 × 185 |
925/0.50 |
2.4 |
24.8 |
4.0 |
61.8 |
0.108 |
|
3 × 240 |
1221/0.50 |
2.6 |
28.2 |
4.2 |
69.4 |
0.082 |
|
芯數×截面 |
導體結構 |
主線芯外徑 |
地線芯外徑 |
護套厚度 |
平均外徑 |
|
|
3×1.5+1×1 |
48/0.20 |
32/0.20 |
2.80 |
2.60 |
1.4 |
9.50 |
|
3×2+1×1.5 |
40/0.25 |
48/0.20 |
3.20 |
2.80 |
1.50 |
10.70 |
|
3×2.5+1×1.5 |
49/0.25 |
48/0.20 |
3.50 |
2.80 |
1.7 |
12.0 |
|
3×4+1×2.5 |
56/0.30 |
49/0.25 |
4.10 |
3.50 |
1.8 |
13.5 |
|
3×6+1×4 |
84/0.30 |
56/0.30 |
4.90 |
4.10 |
1.8 |
15.4 |
|
3×10+1×6 |
84/0.40 |
84/0.30 |
6.60 |
4.90 |
1.80 |
19.5 |
|
3×16+1×10 |
126/0.40 |
84/0.40 |
8.40 |
6.60 |
2.60 |
24.6 |
|
3×25+1×16 |
196/0.40 |
126/0.40 |
10.10 |
8.40 |
2.60 |
28.60 |
|
3×35+1×25 |
494/0.30 |
196/0.40 |
11.50 |
10.10 |
2.60 |
32.20 |
|
3×50+1×35 |
396/0.40 |
194/0.30 |
14.0 |
10.10 |
2.80 |
37.80 |
|
3×70+1×50 |
551/0.40 |
396/0.40 |
15.6 |
11.5 |
3.0 |
42.2 |
|
3×95+1×50 |
760/0.40 |
396/0.40 |
18.2 |
14.0 |
3.2 |
48.5 |
|
3×120+1×70 |
608/0.50 |
551/0.40 |
20.0 |
15.6 |
3.6 |
53.6 |
|
3×150+1×70 |
760/0.50 |
551/0.40 |
22.4 |
15.6 |
3.8 |
58.3 |
|
3×150+1×95 |
760/0.50 |
760/0.40 |
22.4 |
18.2 |
3.80 |
60.0 |
|
3×185+1×70 |
925/0.50 |
551/0.40 |
24.8 |
15.6 |
4.0 |
64.2 |
|
3×185+1×95 |
925/0.50 |
760/0.40 |
24.8 |
18.2 |
4.2 |
65.8 |
|
3×240+1×95 |
1221/0.50 |
475/0.50 |
28.2 |
18.2 |
4.5 |
72.8 |
|
3×240+1×120 |
1221/0.50 |
608/0.50 |
28.2 |
20.0 |
4.5 |
75.0 |
